HOME›CATALOG›AERIAL›NEO-M9N InCase PIN Series Four GNSS Receiver Board w/ U.FL
SKU
XDT-EL0394
TYPE
Hardware
VARIANTS
00
AVAILABILITY
AVAILABLE
Chip Brand
u-blox
Chip
NEO-M9N
Connectivity
USB · UART
Form
Sensor Payload
Frequency
L1 · B1I
Dimensions
32 × 19 mm
01/03

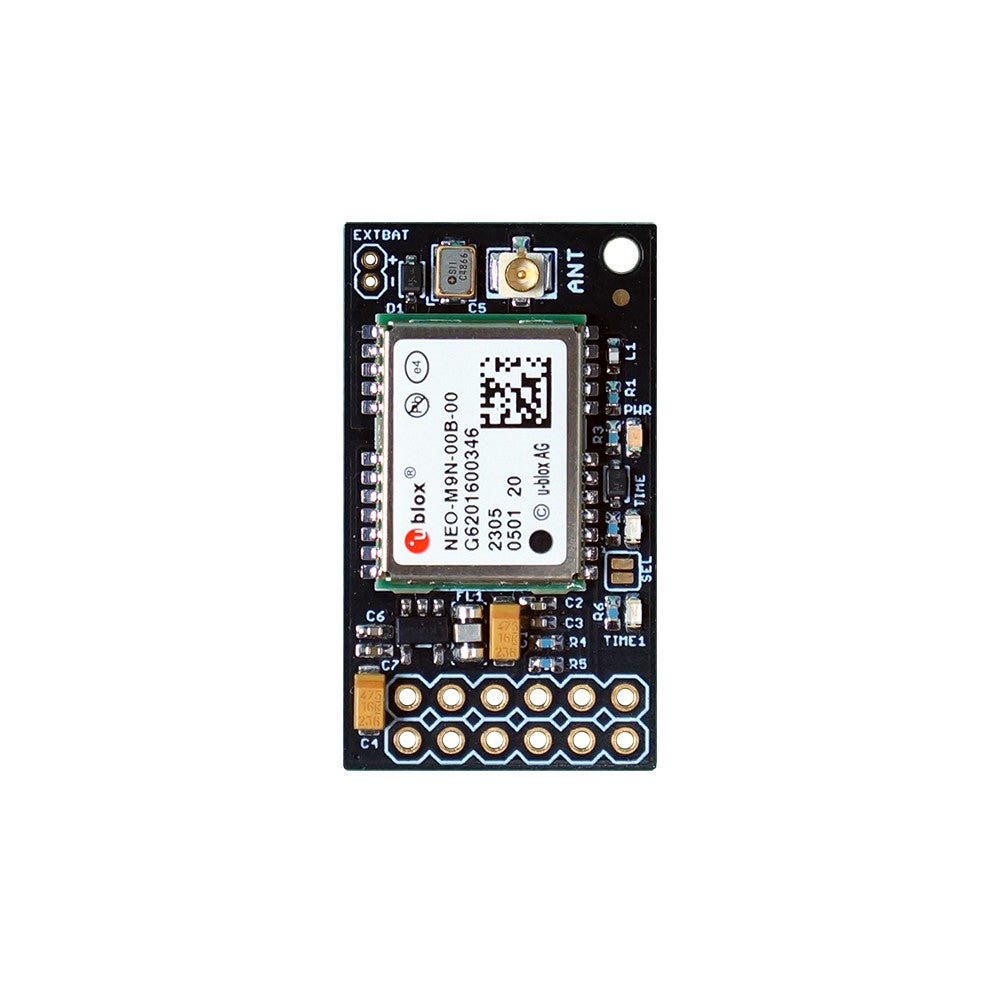

NEO-M9N InCase PIN Series Four GNSS Receiver Board w/ U.FL
VISUAL REFERENCE
SWIPE / TAP TO ZOOM

NEO-M9N INCASE PIN SERIES FOUR GNSS RECEIVER BOARD W/ U.FL

BRAND: Eltehs SIA
SKU: XDT-EL0394
NDAA CompliantMade in EU
$82.99USD
AVAILABLELEAD TIME: 5–7 WEEKDAYS
SHIPS FROM VENTURA, CA
  • 92-channel u-blox M9 engine GPS L1 C/A, QZSS L1 C/A/S, GLONASS L10F BeiDou B1I, Galileo E1B/C SBAS L1 C/A: WAAS, EGNOS, MSAS, GAGAN
  • SuperSense Indoor GPS, -167dBm
  • On-board low noise 3.3V voltage regulator

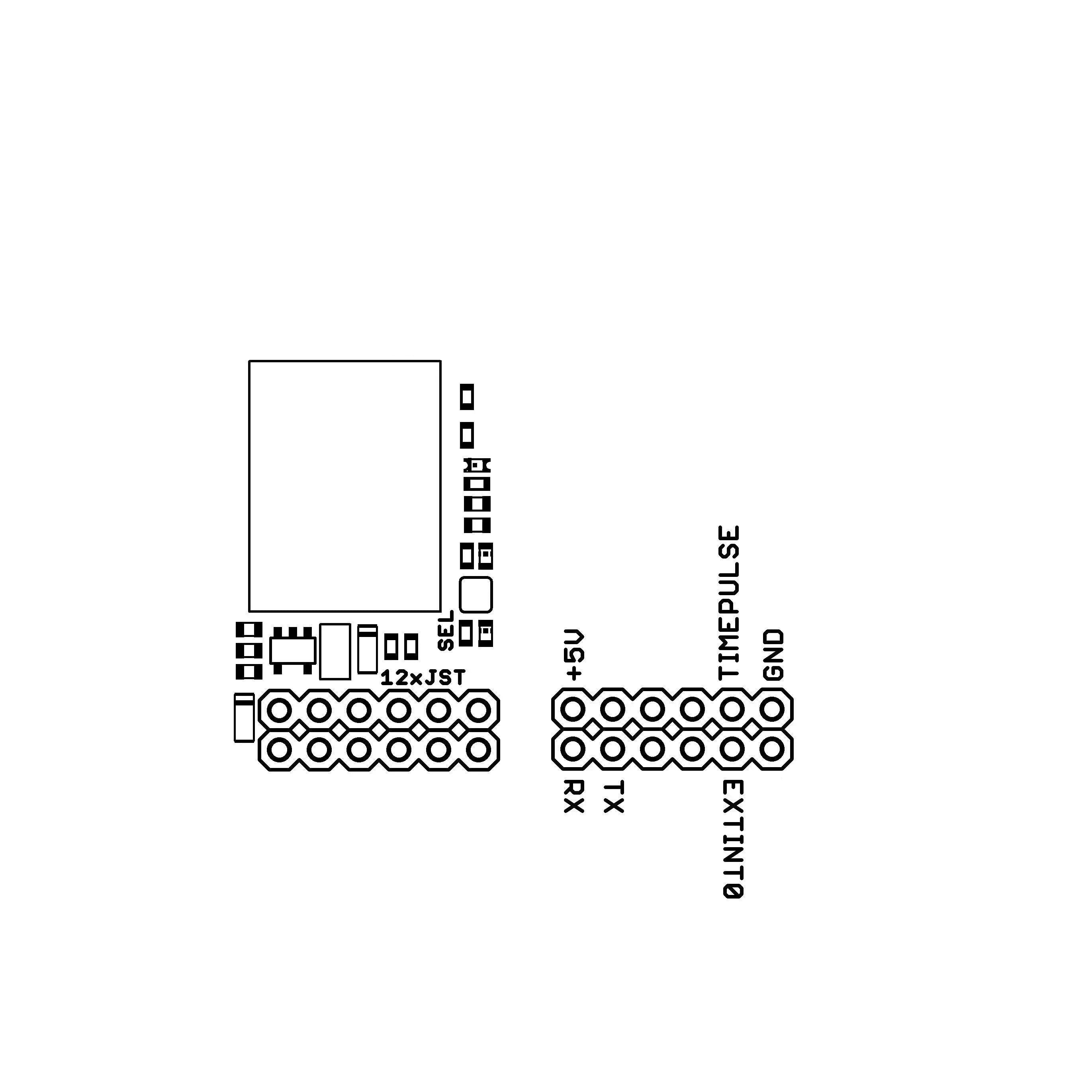

  • USB , I2C (SDA, SCL) and UART (Tx, Rx), EXTIN pin
  • UF.L antenna connectors
1

OVERVIEW

NEO-M9N four GNSS Reference Board with UF.L antenna connectors for your UAV systems, Robots, RC, FPV or other projects. Ultra small and light.

The NEO-M9N Evaluation board makes evaluating the high performance of the u-blox 9 positioning engine simple. With a built-in USB interface for both power supply and high-speed data transfer, the need for an external power supply is eliminated. The NEO-M9N Breakout board is very compact, and it’s user-friendly interface and power supply options make it ideally suited for use in laboratories, vehicles and outdoor locations.

Furthermore, the NEO-M9N breakout board can be used with a PDA or a notebook PC, making it the perfect companion through all stages of design-in projects. It’s a fully assembled and tested PCB for the NEO-M9N with SMA antenna connectors.

Fully assembled and ready to use

  • 92-channel u-blox M9 engine GPS L1 C/A, QZSS L1 C/A/S, GLONASS L10F BeiDou B1I, Galileo E1B/C SBAS L1 C/A: WAAS, EGNOS, MSAS, GAGAN
  • SuperSense Indoor GPS, -167dBm
  • On-board low noise 3.3V voltage regulator
  • USB, I2C (SDA, SCL) and UART (Tx, Rx), EXTIN pin
  • UF.L antenna connectors
  • u-centre ublox Evaluation Software
  • Extensive visualization and evaluation features
  • Supports AssistNow Online and AssistNow Offline A-GPS services
  • Time pulse LED, Power LED
  • Flash memory for firmware upgrade and settings inside in the module (can save settings without battery)
  • Supercapacitor for HOT module start
  • Wire Pad for external backup battery
  • Dimensions 32x19 mm
  • Weight: 2.5 gr.
  • Fully assembled and ready to use
  • Can be easy mounted in your case by double sided tape
  • Pin holes for easy soldering 2.54mm pitch

TECHNICAL SPECIFICATIONS

Receiver ModelNEO-M9N
ChipNEO-M9N
Chip Manufactureru-blox
GNSS BandsL1 · B1I
ConnectivityUSB · UART
Dimensions32 × 19 mm
Weight3 g
EAN4751046553949
