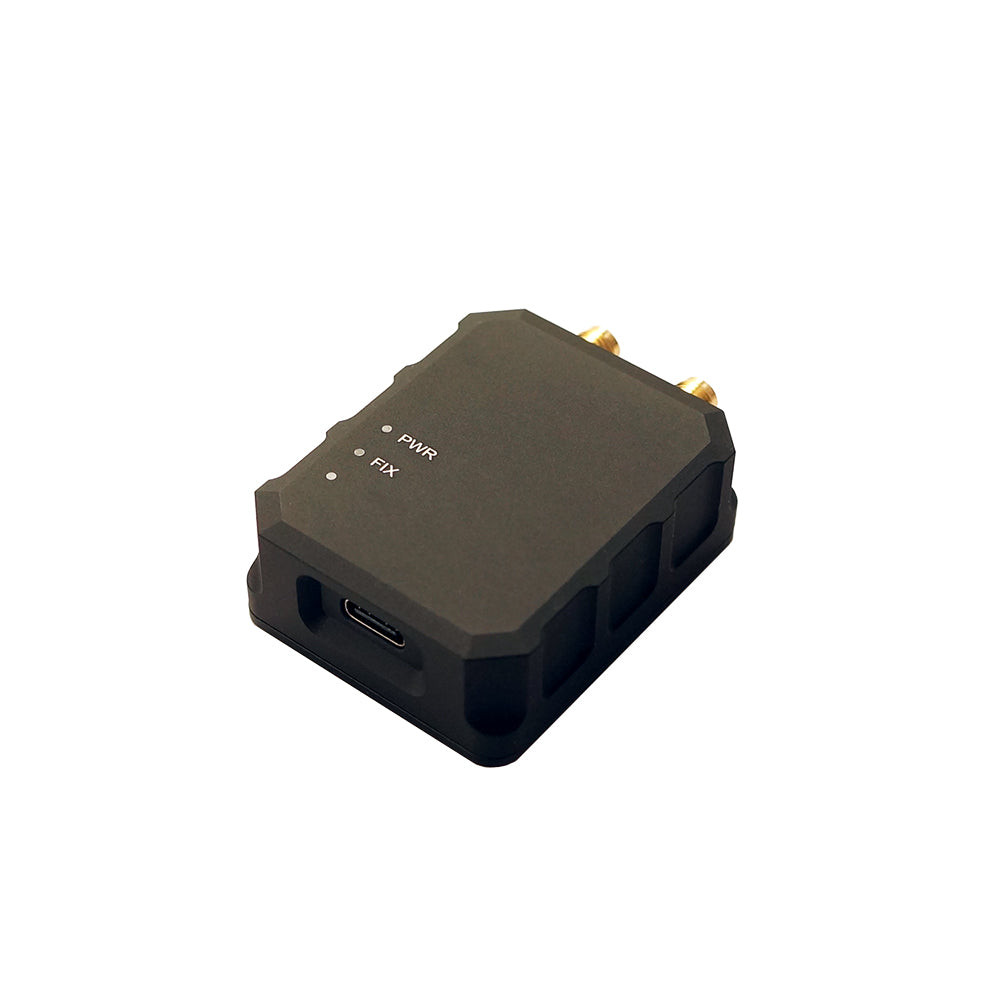

NEO-M9N INDUSTRIAL IP67 GNSS USB C RECEIVER WITH TPS OUT

NEO-M9N INDUSTRIAL four GNSS receiver with SMA antenna and TPS connectors for your UAV systems, Robots, RC, FPV or other projects. Ultra small and light. 7075 Alluminium IP67 case.

The NEO-M9N USB C receiver makes evaluating the high performance of the u-blox 9 positioning engine simple. With a built-in USB interface for both power supply and high-speed data transfer, the need for an external power supply is eliminated. The NEO-M9N receiverd is very compact, and it’s user-friendly interface and power supply options make it ideally suited for use in laboratories, vehicles and outdoor locations.

Furthermore, the NEO-M9N receiver can be used with a Tablet or a notebook PC, making it the perfect companion through all stages of design-in projects. It’s a fully assembled and tested receiver NEO-M9N with SMA antenna and SMA TPS connectors.

• On-board low noise 3.3V voltage regulator
• USB C interface
• SMA antenna connectors
• SMA Time Pulse connector
• Power LED, Time Pulse LED
• u-center u-blox Evaluation Software
• Extensive visualization and evaluation features
• Supports AssistNow Online and AssistNow Offline A-GPS services
• Flash memory for firmware upgrade and settings inside in the module (can save setings without battery)
• Supercapacitor for HOT module start
• Dimensions: 50x40x18 mm
• Weight 55 gramm
• Fully assembled and ready to use
• Working temperature: -40 °C ~ +85 °C
• Storage temperature: -55 °C ~ +95°C
• Humidity: 95% No condensation
• Vibration: MIL-STD-810F
• Shock: MIL-STD-810F
