NEO-M9V INCASE PIN SERIES GNSS MODULE W/ UDR + ADR

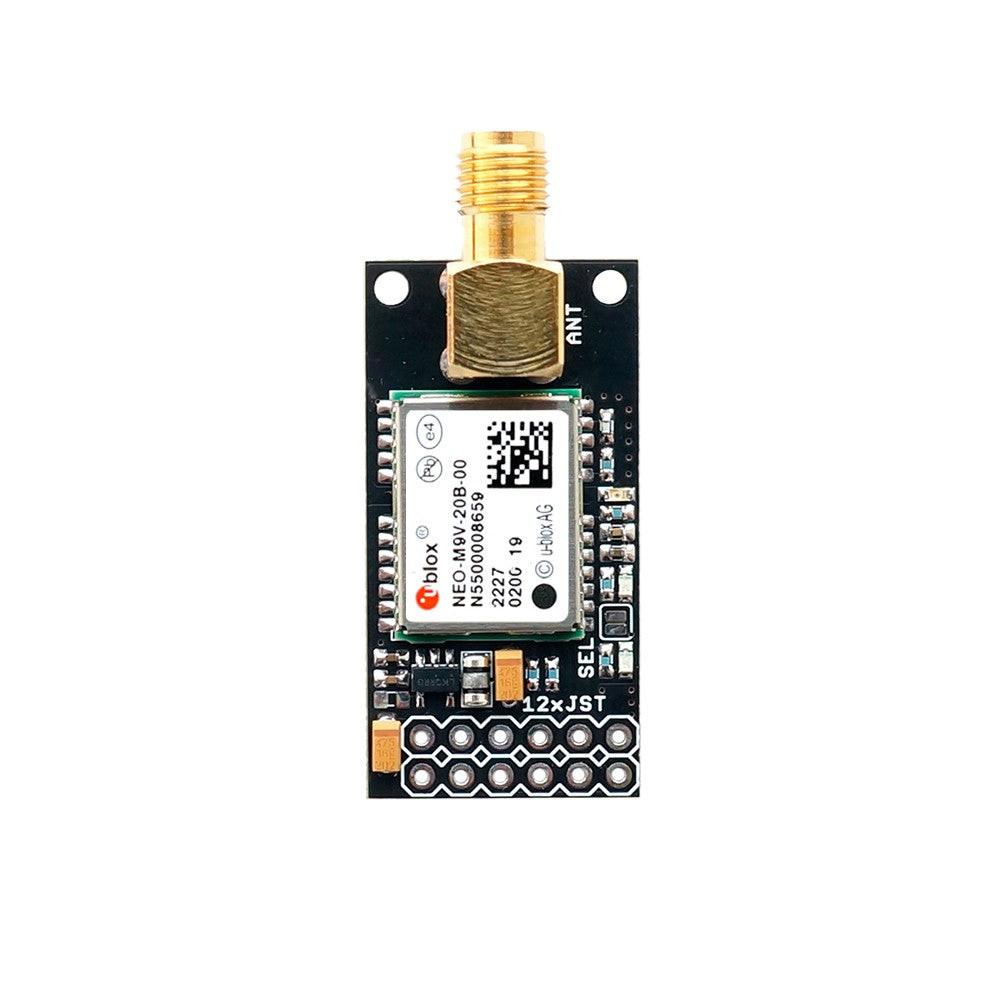

InCase series NEO-M9V Reference Board with SMA antenna connectors for your UDR and ADR systems, UAV systems, Robots, RC, FPV or other projects. Designed for easy integration in your system.

This NEO-M9V GNSS module with dead reckoning technology delivers three times better accuracy than GNSS-only receivers, enabling a smooth urban navigation or tracking experience. In challenging environments, GNSS-only receivers typically have many outliers. In such conditions, statistical accuracy can easily exceed 10 meters. With NEO-M9V, there are few or no outliers. In typical urban scenarios, NEO-M9V offers sub-5-meter accuracy.

Maximum position availability is guaranteed, thanks to the concurrent reception of four global navigation satellite systems (GPS, Galileo, GLONASS, and BeiDou) and dead reckoning technology.

UDR enables fast time to market, and ADR improves the accuracy performance if there are long GNSS outages. Excellent RF interference mitigation thanks to SAW/LNA enables simple and fast RF designs including considerable cost savings from reduced design efforts.

• 92-channel u-blox M9 engine GPS L1 C/A, QZSS L1 C/A/S, GLONASS L1OF BeiDou B1I (1561.098 MHz) only, Galileo E1B/C SBAS L1 C/A: WAAS, EGNOS, MSAS, GAGAN
• On-board low noise 3.3V voltage regulator and RF filter for noise blocking
• USB, I2C, SPI and UART (Tx, Rx), RAW sensor data out
• Support active antenna
• u-center Evaluation Software
• Time pulse LED 1
• Battery holder for 3 V type 621 Lithium battery for HOT module start
• Dimensions: 36x19mm
• Weight: 6.8 gr.
• Fully assembled and ready to use
• Can be easy mounted in your case by double sided tape
• 12 pin 6x2 row 2.54mm connector
